under dash led install how to wire up to the fuse


  • Please log in to reply
26 replies to this topic

#1 aliasgx

aliasgx

    Member

  • Members
  • 672 posts
  • Location:HOLLYWOOD,FL

Posted 26 January 2009 - 10:39 AM

i wanna know if anyone who has done this already can post a step by step ( with pics ) on how to wire up led/neon lights to the fuse box under the dash.......i don't know anything about electrical wiring.......i plan on also adding a on and off switch to it ..........if anyone can help it would be great appreciated.


ps. i know that other people have posted this question but the only thing i found was a drawn diagram and that really didn't help me.....
  • 0

#2 jdconverse

jdconverse

    Lurker

  • Members
  • 15 posts
  • Location:Ca

Posted 26 January 2009 - 03:34 PM

it is quite simple actually. I was in your same situation last week. I got my leds just a few days ago and i am waiting for my switch. if u give me a couple a days i will post a how to. but for the main part all u have to do is strip the wire on ur leds. i used scissors it worked out pretty good. then u take ur center console apart super easy. then when u get to the cig lighter pull off the plastic wiring. then put one wire in one circle and the other wire in the other circle. then place the plastic wiring back on. turn the key to acc. and they should light up. u might have to mix and match the wire to see which goes where. hope that helps but like i said give me a couple of days and ill have pics.
  • 0

#3 aliasgx

aliasgx

    Member

  • Members
  • 672 posts
  • Location:HOLLYWOOD,FL

Posted 27 January 2009 - 08:54 AM

no problem.....thanks that would be awesome bro....i am going to go and buy them today so i can have them ready.....
  • 0

#4 jdconverse

jdconverse

    Lurker

  • Members
  • 15 posts
  • Location:Ca

Posted 29 January 2009 - 10:57 PM

Alright i hope this helps i still don't have the switch yet so they stay on when ever the car is on.

1. Strip the tip of the wire on your leds (either use a wire stripper or the bottom of the pliers work well to).


2. It helps to organize the wire if you tape the reds and blacks together with electrical tape.


3. Then hook the wires to the bottom of the cig lighter. Put the black one on the big prong and the red on the small prong.


4. Then just push the plastic cap back on and you should be good to go. try to turn the car to acc mode before you put everything back together.


5. Now just place the leds where ever you would like and you are good to go.


Hope this helps PM me if u have any ?'s. I'll see if i can add on more when i get my switch.
  • 0

#5 aliasgx

aliasgx

    Member

  • Members
  • 672 posts
  • Location:HOLLYWOOD,FL

Posted 30 January 2009 - 08:55 AM

hey thanks a lot bro....dat looks easy enough.......good job!
  • 0

#6 Mitsu_Fizzle

Mitsu_Fizzle

    Elite

  • Members
  • 1,313 posts
  • Gender:Male
  • Location:Florida, USA
  • Car:08 Lancer GTS (CVT)

Posted 31 January 2009 - 11:18 AM

jdconverse, I added the pics to this.
I'll move the how-to section later.
Getting ready to head to Orlando and pickup my Angel Eyes!!!!
  • 0

#7 SabaUnited

SabaUnited

    Elite

  • Members
  • 1,268 posts
  • Gender:Male
  • Location:Bucks County, PA

Posted 31 January 2009 - 03:15 PM

Thats the same thing I did, it is super easy. I'm just waiting to decide if I want to drill holes in my cup holder..
  • 0

#8 Lancer BCS

Lancer BCS

    Elite

  • Members
  • 1,285 posts
  • Gender:Male
  • Location:Mt. Airy, Maryland

Posted 31 January 2009 - 03:19 PM

I installed my shift knob with a led strip on it and thats where i put the +, - to power it. My underdash led's are ran to my fuse box.
  • 0

#9 aliasgx

aliasgx

    Member

  • Members
  • 672 posts
  • Location:HOLLYWOOD,FL

Posted 02 February 2009 - 09:23 AM

lancerpower4b11 ....can u show me how to hook up the led's to the fuse box.....if u have pics that would be awesome ......
  • 0

#10 Lancer BCS

Lancer BCS

    Elite

  • Members
  • 1,285 posts
  • Gender:Male
  • Location:Mt. Airy, Maryland

Posted 02 February 2009 - 10:54 PM

i dont have pics but i can surely take some sometime.
  • 0

#11 aliasgx

aliasgx

    Member

  • Members
  • 672 posts
  • Location:HOLLYWOOD,FL

Posted 03 February 2009 - 09:25 AM

if u could, dat would be awesome bro...cause i have the lights and the switch for them....ill be picking up the LED dome light and parking lights today after work
  • 0

#12 horizonlancer314

horizonlancer314

    Member

  • Members
  • 731 posts
  • Location:St. Louis

Posted 23 February 2009 - 11:40 AM

yes anything with pictures on how to hook up led's to fusebox and apply switches would be great!
  • 0

#13 nickbutterz

nickbutterz

    We Are Martians

  • Supporting Member
  • 4,673 posts
  • Gender:Male
  • Location:Wayne, NJ
  • Car:Octane Blue Pearl ES Sport

Posted 23 February 2009 - 11:48 AM

you dont have to hook it up to the fuse just use the cigarette lighter its easier thats what i did. but i suggest if u have a switch to connect it to the cigarette lighter thats in the actual center console box because that one is hot all the time and ull be able to turn the lights on even if the car is off. where as if u use the cigarette lighter he shows the lights can only go on when your car is on. idk just something to think about
  • 0

#14 nunzey12

nunzey12

    Member

  • Members
  • 75 posts
  • Gender:Male
  • Location:fort stewart, Georgia
  • Car:08 lancer gts

Posted 03 November 2011 - 03:41 PM

Alright i hope this helps i still don't have the switch yet so they stay on when ever the car is on.

1. Strip the tip of the wire on your leds (either use a wire stripper or the bottom of the pliers work well to).
Posted Image

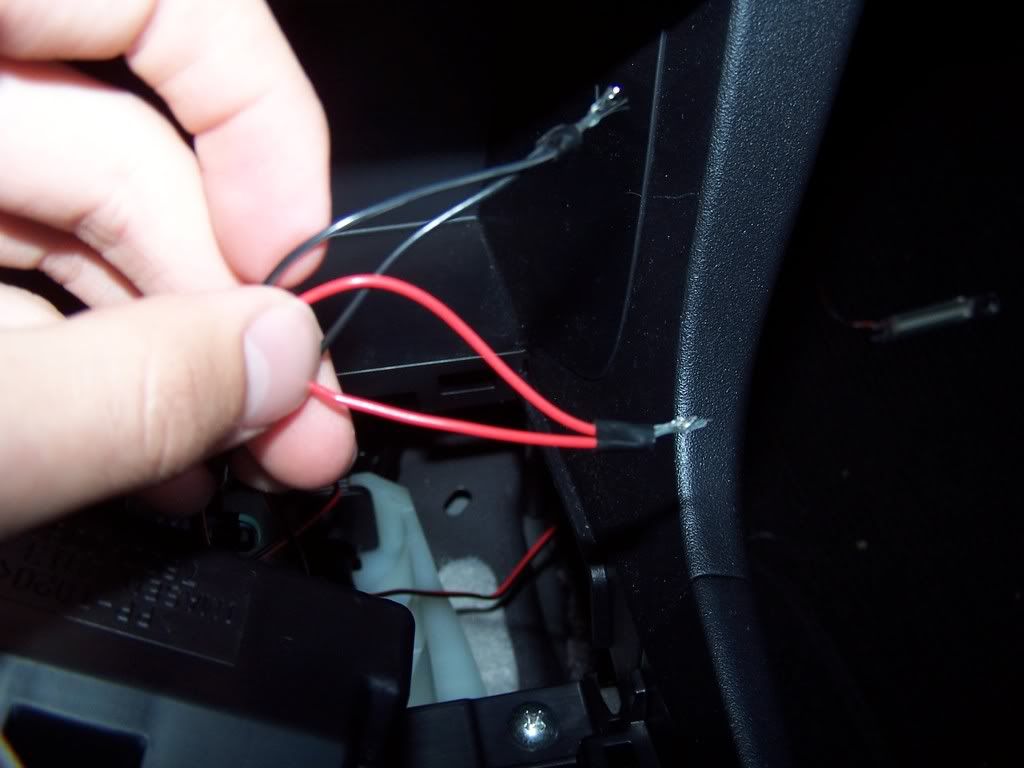

2. It helps to organize the wire if you tape the reds and blacks together with electrical tape.
Posted Image

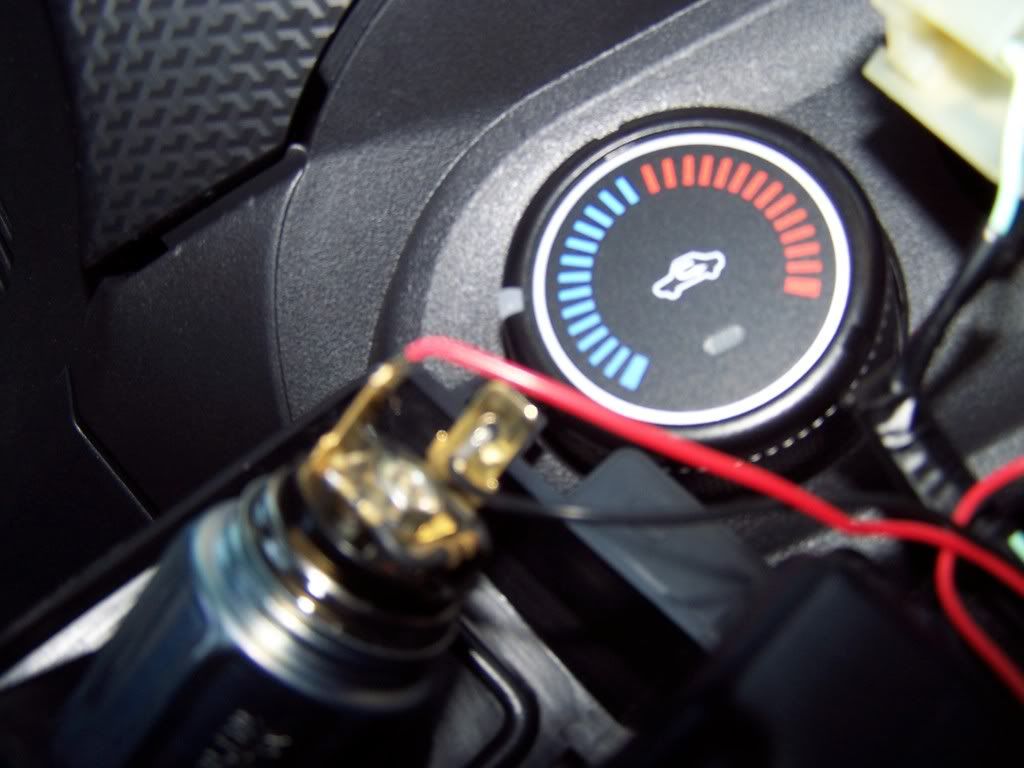

3. Then hook the wires to the bottom of the cig lighter. Put the black one on the big prong and the red on the small prong.
Posted Image

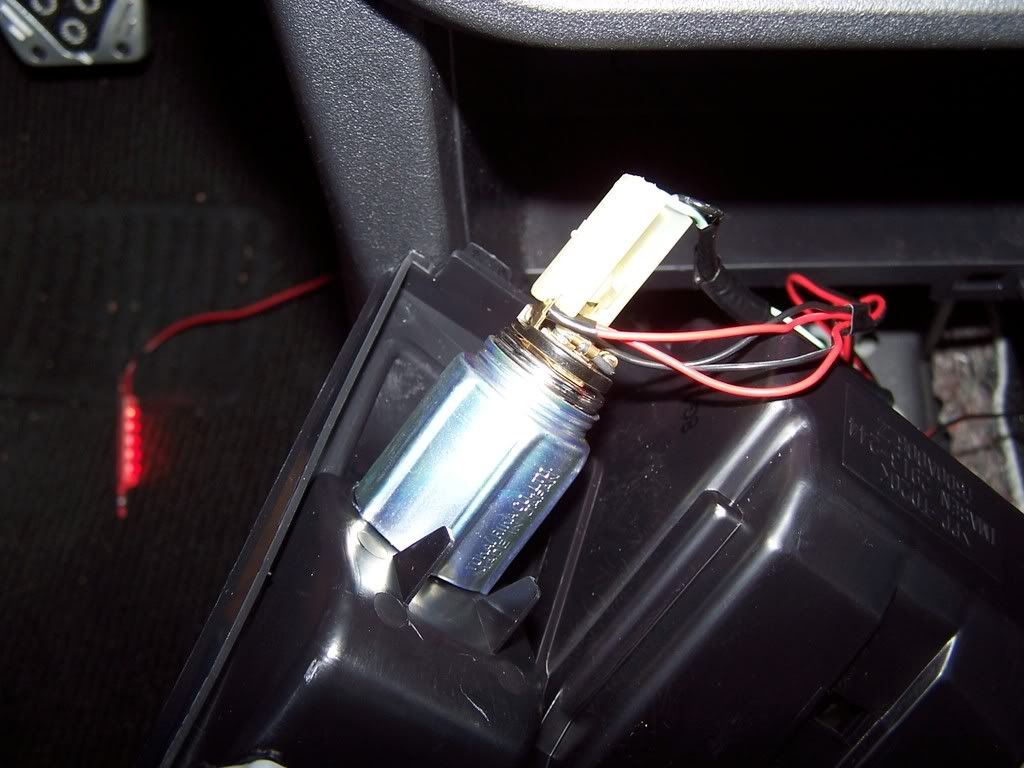

4. Then just push the plastic cap back on and you should be good to go. try to turn the car to acc mode before you put everything back together.
Posted Image

5. Now just place the leds where ever you would like and you are good to go.
Posted Image

Hope this helps PM me if u have any ?'s. I'll see if i can add on more when i get my switch.


do they turn on only when your headlights are turned on or are they always on
  • 0

#15 htowncoupe

htowncoupe

    Member

  • Members
  • 486 posts
  • Gender:Male
  • Location:long island NY
  • Car:2011 Lancer ES

Posted 04 November 2011 - 07:29 PM

im going to be doing this over the next few days but i would rather wire into a fuse so it would be easier to use a switch.
  • 0

2011 Lancer ES (white)

EXTERIOR:
Blacked out front
White carbon fiber front badge
Eyelids
Tinted tail lights / side markers / rear reflectors / 3rd breaklight
Lip spoiler
Roof lip spoiler
Debadged rear
6000k HID kit
White LED side markers / turning signals
LED headlight strip
Hideaway front plate relocater
GTS front fangs
GTS wheels (painted black)
50mm black lugs
Matte black hood / roof / trunk
LED tail lights (audi style)
Back up camer

Center lip

Yakima roof rack (w/ 2 bike racks)




INTERIOR:
4x3 SMD boards for all my interior lights
White CF wrapped pillars
White CF wrapped dash / door trim / steering wheel trim
Indash NAV Kennwood DNX6160

Rockford Prime AMP

Alpine 8" S83V SUB
Black velvet wrapped roof liner
All weather mats

CB radio / PA system



ME: http://www.facebook....hp?id=505160334

Special thanks to my sponsors
http://www.phenomenalvinyl.com/
http://www.avenuesound.com/
http://www.precisioninstallations.org/


Posted Image


#16 BRIGHT_ONE

BRIGHT_ONE

    Member

  • Members
  • 52 posts
  • Gender:Male
  • Location:Smyrna, DE & Norfolk, VA
  • Car:2012 Wicked White GT

Posted 02 February 2012 - 12:40 AM

you dont have to hook it up to the fuse just use the cigarette lighter its easier thats what i did. but i suggest if u have a switch to connect it to the cigarette lighter thats in the actual center console box because that one is hot all the time and ull be able to turn the lights on even if the car is off. where as if u use the cigarette lighter he shows the lights can only go on when your car is on. idk just something to think about

so just to clarify, you can use a switch on the cigarette lighter, and if you leave it on all the time the lights will only come on when the car is on? this sounds awesome if it's right it's way easier and is exactly what I'm looking for!
  • 0
This is my LANCER, there are many like it, but this one is my own...

#17 RalliArtist

RalliArtist

    Member

  • Members
  • 535 posts
  • Gender:Male
  • Location:Germany
  • Car:2010 Ralliart
  • ROTM :April 2014

Posted 02 February 2012 - 05:07 AM

go to an auto part store and pick up an 'add-a-fuse'. wire the power from the leds to the red wire coming off the fuse. pull out the fuse of the power source in the fuse box you want to use and stick the add-fuse in it. no wire splicing. easy

Posted Image

as for a switch, i put mine here:

Posted Image
  • 0

#18 htowncoupe

htowncoupe

    Member

  • Members
  • 486 posts
  • Gender:Male
  • Location:long island NY
  • Car:2011 Lancer ES

Posted 02 February 2012 - 10:34 PM

nice
i can use any of the spots on the right side of the fuze box ?
  • 0

2011 Lancer ES (white)

EXTERIOR:
Blacked out front
White carbon fiber front badge
Eyelids
Tinted tail lights / side markers / rear reflectors / 3rd breaklight
Lip spoiler
Roof lip spoiler
Debadged rear
6000k HID kit
White LED side markers / turning signals
LED headlight strip
Hideaway front plate relocater
GTS front fangs
GTS wheels (painted black)
50mm black lugs
Matte black hood / roof / trunk
LED tail lights (audi style)
Back up camer

Center lip

Yakima roof rack (w/ 2 bike racks)




INTERIOR:
4x3 SMD boards for all my interior lights
White CF wrapped pillars
White CF wrapped dash / door trim / steering wheel trim
Indash NAV Kennwood DNX6160

Rockford Prime AMP

Alpine 8" S83V SUB
Black velvet wrapped roof liner
All weather mats

CB radio / PA system



ME: http://www.facebook....hp?id=505160334

Special thanks to my sponsors
http://www.phenomenalvinyl.com/
http://www.avenuesound.com/
http://www.precisioninstallations.org/


Posted Image


#19 bertageous

bertageous

    Member

  • Members
  • 294 posts
  • Gender:Male
  • Location:Alberta, Canada
  • Car:2010 Lancer DE

Posted 02 February 2012 - 11:50 PM

i wired mine straight into the cigarette lighter fuse, i didnt need the "add-a-fuse" thing, it works awesome
  • 0
My Ride

Done:
[x] GTS Air Dam
[x] GTS Wing
[x] GTS Centre Console
[x] GTS Wheels
[x] 35W 8000K HID Lows
[x] 35W 8000K HID Fogs
[x] K&N Drop-in Air Filter
[x] 25% Tint on Back Windows
[x] Grill LED
[x] Blacked Out Front Bumper
[x] De-badged Trunk
[x] Interior Footwell LEDs
[x] Fog Lights
[x] Rear Diffuser
[x] Mugen Style Window Visors
[x] Center Lip
[x] Rally Armor Mud Flaps


Future:
[] SRI
[] Rear Spats (bought and waiting for paint)
[] Lightweight Crank Pulley
[] Eibach Sportline Lowering Springs
[] Greddy SE Axleback Exhaust

#20 htowncoupe

htowncoupe

    Member

  • Members
  • 486 posts
  • Gender:Male
  • Location:long island NY
  • Car:2011 Lancer ES

Posted 03 February 2012 - 12:38 AM

my bad i should of added a quote i was talking to ralliartist
  • 0

2011 Lancer ES (white)

EXTERIOR:
Blacked out front
White carbon fiber front badge
Eyelids
Tinted tail lights / side markers / rear reflectors / 3rd breaklight
Lip spoiler
Roof lip spoiler
Debadged rear
6000k HID kit
White LED side markers / turning signals
LED headlight strip
Hideaway front plate relocater
GTS front fangs
GTS wheels (painted black)
50mm black lugs
Matte black hood / roof / trunk
LED tail lights (audi style)
Back up camer

Center lip

Yakima roof rack (w/ 2 bike racks)




INTERIOR:
4x3 SMD boards for all my interior lights
White CF wrapped pillars
White CF wrapped dash / door trim / steering wheel trim
Indash NAV Kennwood DNX6160

Rockford Prime AMP

Alpine 8" S83V SUB
Black velvet wrapped roof liner
All weather mats

CB radio / PA system



ME: http://www.facebook....hp?id=505160334

Special thanks to my sponsors
http://www.phenomenalvinyl.com/
http://www.avenuesound.com/
http://www.precisioninstallations.org/


Posted Image
